K2 fixings

K2 fixings

This section is dedicated to our range of K2 solar fixings. We offer the complete range of K2 solar panel products for on roof, ground mounted or project parts to suit any size solar panel.

K2 fixings

Description Price Pack of 8
K2 solar rail @ 2.1m length (ideal for 2 solar panels in portrait) Click here to purchase of 2.1m length solar panel rails £11.80 each £88.92
K2 solar rail @ 3.25m length (ideal for 3 solar panels in portrait) Click here to purchase of 3.25m length solar panel rails £18.30 each £139.08
K2 solar rail @ 4.3m length (ideal for 4 solar panels in portrait) £24.25 each £173.88

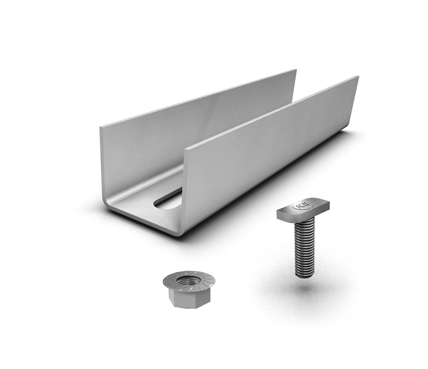

K2 rail joiner

The rail joiner enables safe and secure connection of all of our solar rails.

Description Price Pack of 12
Solar rail connection set. Click here to purchase of solar rail joiners £3.85 each £45.36

K2 cross rail connector

In some situations rails need to be connect at 90 degree to each other. By using this connector it is possible to overlap rails securely.

Description Price Pack of 10
Cross rail connection set £3.15 each £34.43

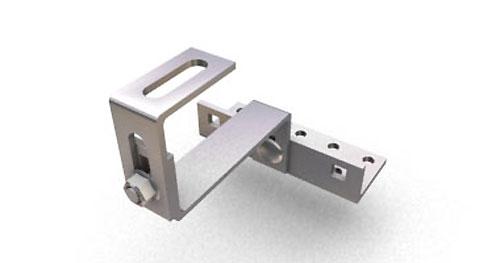

Pan tile solar bracket

This is the range of solar rail fixing brackets for pan or concrete tiled roofs. Standard non adjustable, vario 1 single adjustment, vario 2 with two height adjustments.

Description Price Box of 25
Standard pan tile bracket £5.17 each £129.15
Vario 1 Pan tile bracket. Click here to purchase of pan tile Vario 1 solar rail fixing bracket £6.79 each £152.78
Vario 2 Pan tile bracket £6.65 each £149.63

Shingle tile solar bracket

The shingle roof solar panel fixing for thin flat roof tiles.

Description Price Box of 20
Shingle flat tile roof bracket £8.33 each £149.94



Slate tile solar bracket

Slate tile on roof fixing brackets for man made or natural slates.

Description Price Box of 25
Slate on roof fixing brackets. Click here to purchase Slate solar rail fixing brackets £6.58 each £148.05



Plain tile solar bracket

Plain tile on roof fixing brackets for any thin type roof slates. The dog leg give extra roof clearance where needed.

Destription Price Box of 25
Plain tile on roof fixing brackets. Click here to purchase Plain tile solar rail fixing brackets £6.79 each £152.78



Solar bracket fixing screws

Solar panel rail bracket fixing screws (stainless steel) 2 required per bracket.

Description Price Box of 50
Stainless steel solar bracket fixing screws 6 x 80. Click here to purchase stainless steel bracket Fixing screws £0.80 £36.00





Solar bracket flashing kit

To prevent the ingress of water when fixing in place on roof solar rail fixing brackets. The flashing kit should be used to make any project water tight.

Description Price Box of 25
Slate bracket flashing kit. Click here to purchase Slate and plain tile bracket flashing kit £6.95 each £173.67
Pan tile bracket flashing kit. Click here to purchase Pan tile bracket flashing kit £6.48 each £162.09

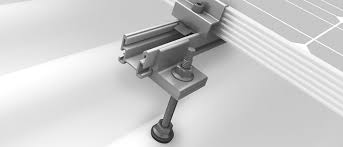

Rafter solar panel fixing

When fixing solar panel rails onto wooden rafters, use the rafter fixing screw to optimise stability.

Description Price Box of 25
Rafter fixing screws £3.72 £83.77

Solar rail T bolt fixing NUT      Solar rail T bolt

When using the rolar roof rails and fixing bracket the T bolt and serated flanged nuts are required to make sure project is securely fastened together.

Description Price Bag of 25
Rail/Bracket fixing T bolt @ 30mm long £0.61 £15.19
Rail/Bracket fixing serated M10 nut. Click here to purchase stainless steel T bolt and serrated Nut set £0.28 £6.19

Metal purling fixing bolts   Rafter top plate

These metal screw fixings are developed to fix solar rails into metal purlins. The top plates are needed to fix screws onto solar rails.

Description Price Box of 25
Metal purlin fixing screw M8 x 100/50 5.26 each £118.44
Top plate fixing to match above £1.50 each £33.75



Universal silver solar panel ends     Universal black solar panel ends

Universal end clamps for panel sizes between 32-42mm in thickness.

Description Price Bag of 25
Universal silver end clamps £2.10 each £47.25
Universal black end clamps. Click here to purchase Universal end clamps silver or black 32-42mm £2.55 each £57.38

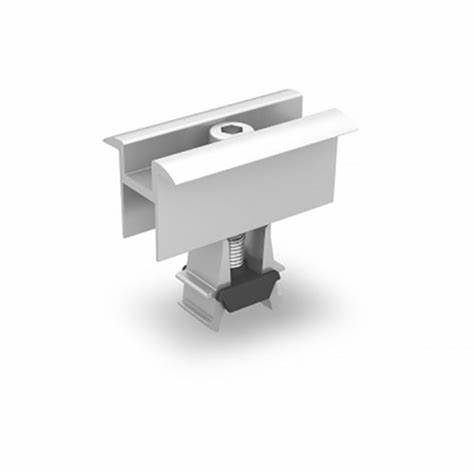

Universal silver solar panel mids

Universal mid clamps for panel sizes between 32-42mm in thickness.

Description Price Bag of 25
Universal silver mid clamps £2.55 £57.38
Universal black mid clamps. Click here to purchase Universal mid clamps silver or black 32-42mm £2.55 £57.38



Std silver solar panel mids     Std black solar panel mids

Std end solar panel fixing clamps.

Description Price Bag of 25
Standard silver end clamps £1.73 each £38.81
Standard black end clamps £1.95 each £43.88



Std silver solar panel mids     Std black solar panel mids

Std mid solar panel fixing clamps.

Description Price Bag of 25
Standard silver mid clamps £1.73 each £38.81
Standard black mid clamps £1.95 each £43.88

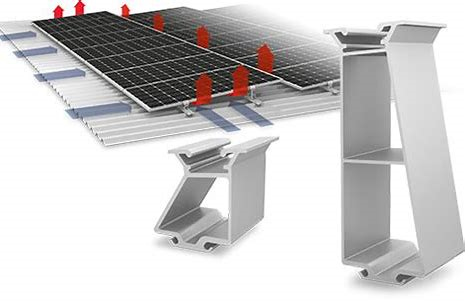

Mini rail solar panel fixings

When fixing solar panels onto box section metal roof, these mini rail fixings can be used.

Description Price Box of 20
Mini rail end fixing kits £8.15 each £146.61
Mini rail mid fixing sets £8.15 each £146.61

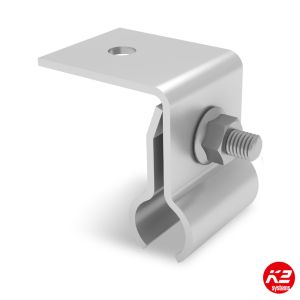

calzip claw solar panel fixings     Roof seam solar panel fixings

These clamps are designed to be attached to the variations of roof seams. Allowing solar panel rails a secure attachment.

Description Price Box of 25
Calzip claw roof clamping system £4.72 each £106.20
Seam roof clamping system £7.27 each £163.80

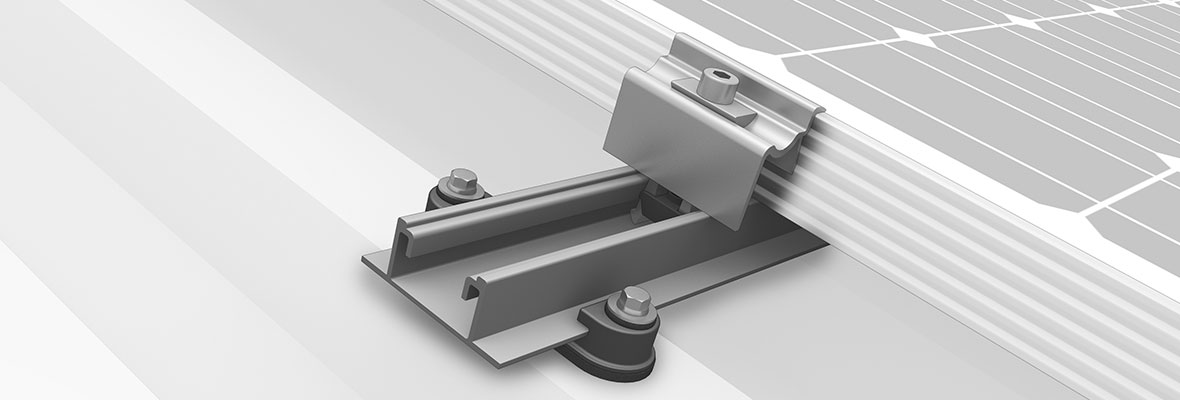

Solar panel speed rail

These solar panel speed fit rails are used on large box section roof projects

Description Price Quantities of 8
Solar speed rails 2.1m length (2 panels portrait) £10.05 per length £72.36
Solar speed rails 3.25m length (3 panels portrait) £16.80 per length £120.96
Solar speed rails 4.3m length (4 panels portrait) £22.20 per length £499.50



Solar panel speed rail clamp     Solar panel speed rail clamp screws     Solar panel speed rail joiners     Solar panel speed rail lock set

Solar speed fit rail parts

Description Price Bag of 25
Speed rail fixing clamp £0.72 each £16.20
Speed rail clamp fixing screws £0.41 each £37.13
Speed rail joiners £1.36 each £30.60
Speed rail lock set £2.96 each £66.60
